CI 589 MNAK

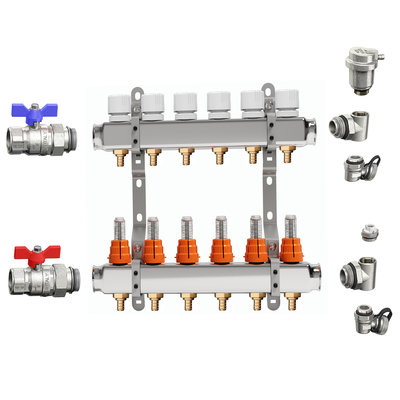

BSP kit made of stainless steel flow manifold with flow meter/adjuster FLUXER, stainless steel return manifold with manually operated isolation valves, accessory kit AC 7575 NA, pre-assembled supports and crimping fittings for PEX and PERT pipe. Accessory kit AC 7575 NA is supplied but requires assembly.
Download
= Tender description
| Code | Ways | Size US | Weight(lb) | Class | Packaging |
|---|---|---|---|---|---|
| 503202MNA1K | 2 | 1“ BSP x Pipe 1/2“ | 6.53 lb | OB | 1 |
| 503203MNA1K | 3 | 1“ BSP x Pipe 1/2“ | 7.87 lb | OB | 1 |
| 503204MNA1K | 4 | 1“ BSP x Pipe 1/2“ | 8.64 lb | OB | 1 |
| 503205MNA1K | 5 | 1“ BSP x Pipe 1/2“ | 9.41 lb | OB | 1 |
| 503206MNA1K | 6 | 1“ BSP x Pipe 1/2“ | 10.14 lb | OB | 1 |
| 503207MNA1K | 7 | 1“ BSP x Pipe 1/2“ | 10.96 lb | OB | 1 |
| 503208MNA1K | 8 | 1“ BSP x Pipe 1/2“ | 11.73 lb | OB | 1 |
| 503209MNA1K | 9 | 1“ BSP x Pipe 1/2“ | 12.50 lb | OB | 1 |
| 503210MNA1K | 10 | 1“ BSP x Pipe 1/2“ | 13.25 lb | OB | 1 |
| 503211MNA1K | 11 | 1“ BSP x Pipe 1/2“ | 14.04 lb | OB | 1 |
| 503212MNA1K | 12 | 1“ BSP x Pipe 1/2“ | 14.77 lb | OB | 1 |
| 503213MNA1K | 13 | 1“ BSP x Pipe 1/2“ | 15.59 lb | OB | 1 |
| 503202MNA2K | 2 | 1“ BSP x Pipe 3/4“ | 6.50 lb | OB | 1 |
| 503203MNA2K | 3 | 1“ BSP x Pipe 3/4“ | 7.87 lb | OB | 1 |
| 503204MNA2K | 4 | 1“ BSP x Pipe 3/4“ | 7.05 lb | OB | 1 |
| 503205MNA2K | 5 | 1“ BSP x Pipe 3/4“ | 9.41 lb | OB | 1 |
| 503206MNA2K | 6 | 1“ BSP x Pipe 3/4“ | 10.14 lb | OB | 1 |
| 503207MNA2K | 7 | 1“ BSP x Pipe 3/4“ | 10.96 lb | OB | 1 |
| 503208MNA2K | 8 | 1“ BSP x Pipe 3/4“ | 11.75 lb | OB | 1 |
| 503209MNA2K | 9 | 1“ BSP x Pipe 3/4“ | 12.50 lb | OB | 1 |
| 503210MNA2K | 10 | 1“ BSP x Pipe 3/4“ | 13.25 lb | OB | 1 |
| 503211MNA2K | 11 | 1“ BSP x Pipe 3/4“ | 14.04 lb | OB | 1 |
| 503212MNA2K | 12 | 1“ BSP x Pipe 3/4“ | 14.77 lb | OB | 1 |
| 503213MNA2K | 13 | 1“ BSP x Pipe 3/4“ | 15.61 lb | OB | 1 |
