Code Ways Size Depth Suitable Cabinet Cabinet width Price Class Packaging
503242P80 2 1“ x EUROK 80 mm 200086 500 mm 112,48 € OB 1
503243P80 3 1“ x EUROK 80 mm 200086 500 mm 139,51 € OB 1
503244P80 4 1“ x EUROK 80 mm 200086 500 mm 166,54 € OB 1
503245P80 5 1“ x EUROK 80 mm 200686 600 mm 193,57 € OB 1
503246P80 6 1“ x EUROK 80 mm 200686 600 mm 220,59 € OB 1
503247P80 7 1“ x EUROK 80 mm 200186 700 mm 247,62 € OB 1
503248P80 8 1“ x EUROK 80 mm 200186 700 mm 274,65 € OB 1
503249P80 9 1“ x EUROK 80 mm 200786 800 mm 301,68 € OB 1
503250P80 10 1“ x EUROK 80 mm 200786 800 mm 328,71 € OB 1
503251P80 11 1“ x EUROK 80 mm 200286 900 mm 355,74 € OB 1
503252P80 12 1“ x EUROK 80 mm 200286 900 mm 384,53 € OB 1
503253P80 13 1“ x EUROK 80 mm 200886 1000 mm 429,17 € OB 1
503242 2 1“ x EUROK 110 mm 200086 500 mm 112,48 € OB 1
503243 3 1“ x EUROK 110 mm 200086 500 mm 139,51 € OB 1
503244 4 1“ x EUROK 110 mm 200086 500 mm 166,54 € OB 1
503245 5 1“ x EUROK 110 mm 200686 600 mm 193,57 € OB 1
503246 6 1“ x EUROK 110 mm 200686 600 mm 220,59 € OB 1
503247 7 1“ x EUROK 110 mm 200186 700 mm 247,62 € OB 1
503248 8 1“ x EUROK 110 mm 200186 700 mm 274,65 € OB 1
503249 9 1“ x EUROK 110 mm 200786 800 mm 301,68 € OB 1
503250 10 1“ x EUROK 110 mm 200786 800 mm 328,71 € OB 1
503251 11 1“ x EUROK 110 mm 200286 900 mm 355,74 € OB 1
503252 12 1“ x EUROK 110 mm 200286 900 mm 384,53 € OB 1
503253 13 1“ x EUROK 110 mm 200886 1000 mm 429,17 € OB 1
03

Distribuitoare inox

Outlets misalignment: when you rotate 180° one of the two manifolds, you get the outputs misaligned. This feature makes the installation of pipes very simple.

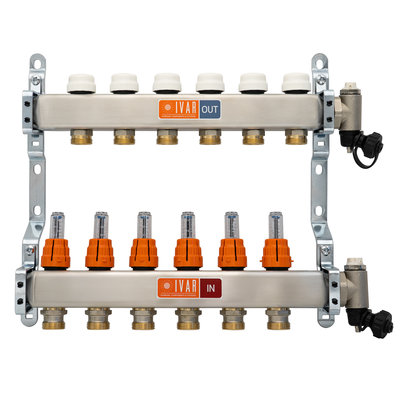

IVAR steel manifolds are a valid alternative to traditional brass manifolds. They are used for the distribution of heating fluid both in radiant panel systems and radiators, and are compatible also with cooling systems, where suitable insulation is recommended to avoid the effects of surface condensation.

Thanks to micrometric lockshields or flow rate controllers, IVAR's Fluxer stainless-steel manifolds guarantee perfect system balancing, avoiding energy waste and ensuring maximum ambient comfort. They are equipped with manual shutoff valves or valves with electrothermal head for the control of individual circuits.

The manifolds, in AISI 304 high gauge stainless steel, are supplied in flow-return kits, in all the same configurations as available for the brass manifolds. With 1’’ head fittings and ¾’’ BSP EUROK branches, they are available with 2 to 13 ways and are perfectly compatible with all the accessories available for the brass bar manifolds.

NEW: Manifolds with outlets misalignment.
When you rotate 180° one of the two manifolds, you get the outputs misaligned. This feature makes the installation of pipes very simple.
Patent pending!
